Storage Battery
LiFePO4 storage battery with circuit-breaker protection — 25.6V/51.2V, 2.56–16.08 kWh, wall-mounted or wheeled metal cabinets.

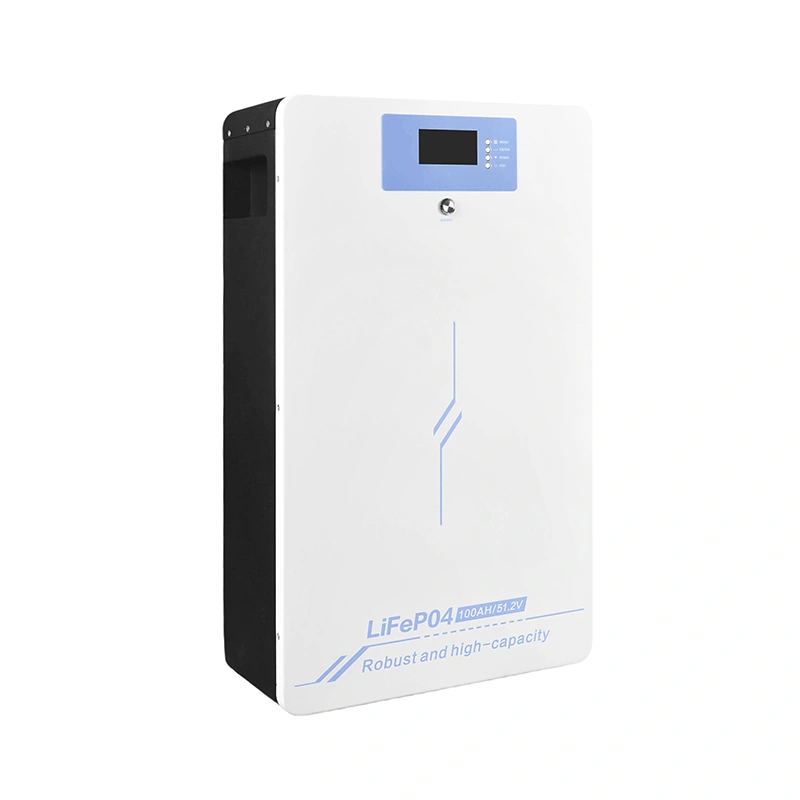

The LC series packs 2.56–16.08 kWh of LiFePO4 storage into wall-mounted and wheeled metal cabinets for 25.6V/51.2V home and small commercial systems. A built-in circuit breaker adds a physical layer of protection on top of the BMS.
Intelligent power management provides SOC/SOH estimation, cell balancing and low-power sleep modes; RS232/RS485/CAN communication with user-changeable inverter protocols integrates with mainstream inverters, and up to 15 modules can operate in parallel.
Model | Usable Capacity | Nominal Voltage | Max Discharge | Max Output | Rec. Charge Current | Cycle Life |
LC100AH/51.2V | 5120 Wh | 51.2V | 100A | 5120W | 50A | ≥6,000 |
LC230AH/51.2V | 11776 Wh | 51.2V | 200A | 10240W | 115A | ≥6,000 |
LC300AH-14.3K | 14336 Wh | 51.2V | 200A | 10240W | 140A | ≥6,000 |
LC314AH-16.1K | 16076 Wh | 51.2V | 200A | 10240W | 157A | ≥6,000 |
LC100AH/25.6V | 2560 Wh | 25.6V | 100A | 2560W | 50A | ≥6,000 |
LC230AH/25.6V | 5888 Wh | 25.6V | 200A | 5120W | 115A | ≥6,000 |
LC300AH-7.2K | 7168 Wh | 25.6V | 200A | 5120W | 140A | ≥6,000 |
Model | Installation | Dimensions D×W×H (mm) | Net Weight (kg) |
LC100AH/51.2V | Wall-mounted | 629×367×175 | 49 |
LC230AH/51.2V | Wall-mounted (wheeled optional) | 394×680×243 | 96 |
LC300AH-14.3K | Mobile (wheeled) | 820×394×230 | 117 |
LC314AH-16.1K | Mobile (wheeled) | 820×394×230 | 117 |
LC100AH/25.6V | Wall-mounted | 367×412×165 | 28 |
LC230AH/25.6V | Wall-mounted | 442×394×231 | 51 |
LC300AH-7.2K | Wall-mounted | 510×394×230 | 65 |
Pylon, Growatt, Voltronic Power, Pengcheng, Schneider, SRNE
| Battery Chemistry | LiFePO4 |
|---|---|
| Usable Capacity | 2.56–16.08 kWh |
| Nominal Voltage | 51.2V / 25.6V DC |
| Voltage Range | 43.2–58.4V / 21.6–29.2V DC |
| Max Continuous Discharge Current | 100A / 200A |
| Max Power Output | 2560–10240W |
| Cycle Life | ≥6,000 cycles (standard charge/discharge @ 25°C) |
| Depth of Discharge (DoD) | ≥95% |
| Parallel Expansion | 1–15 modules |
| Max Charging Voltage | 58.4V ±0.2V / 29.2V ±0.2V DC |
|---|---|
| Recommended Charging Voltage | 57.6V ±0.2V / 28.8V ±0.2V DC |
| Recommended Charging Current | 50–157A (per model) |
| Charge Current Limiting | 10A / 20A |
| BMS Protection | Over-charge/discharge voltage & current, short circuit, over/under-temperature, MOS over-temperature, cell failure (cell ΔV >1V); circuit breaker |
|---|---|
| Overcurrent Protection | BMS100: >105A alarm, >110A/1s trip; BMS200: >205A alarm, >210A/1s trip |
| Over/Under-Voltage Protection | OV 59.2V / UV 43.2V (25.6V models: 29.6V / 21.6V) |
| Self-Discharge | Work ≤50mA; low-power mode ≤100–200µA |
| Display | LCD |
|---|---|
| Communication | RS232, RS485, CAN (standard) |
| Inverter Protocols | Pylon, Growatt, Voltronic Power, Pengcheng, Schneider, SRNE |
| Dimensions (D×W×H) | 367×412×165 – 820×394×230 mm |
|---|---|
| Net Weight | 28–117 kg |
| Terminal Type | M8 |
| Shell Material | Metal |
| Installation | Wall-mounted / Wall-mounted (wheeled optional) / Mobile (wheeled) |
| IP Rating | IP21 (indoor) |
|---|---|
| Operating Temperature | Discharge −10~+50°C; Charge 0~+60°C |
| Storage Temperature | >1 month 0~35°C; ≤1 month −20~45°C |
| Certifications | UN 38.3 tested (per model); IEC 62619 + CE certified (per model); LC230 512: EN IEC 62619 + EU Battery Regulation 2023/1542; annual sea/road transport appraisal — documents on request |
