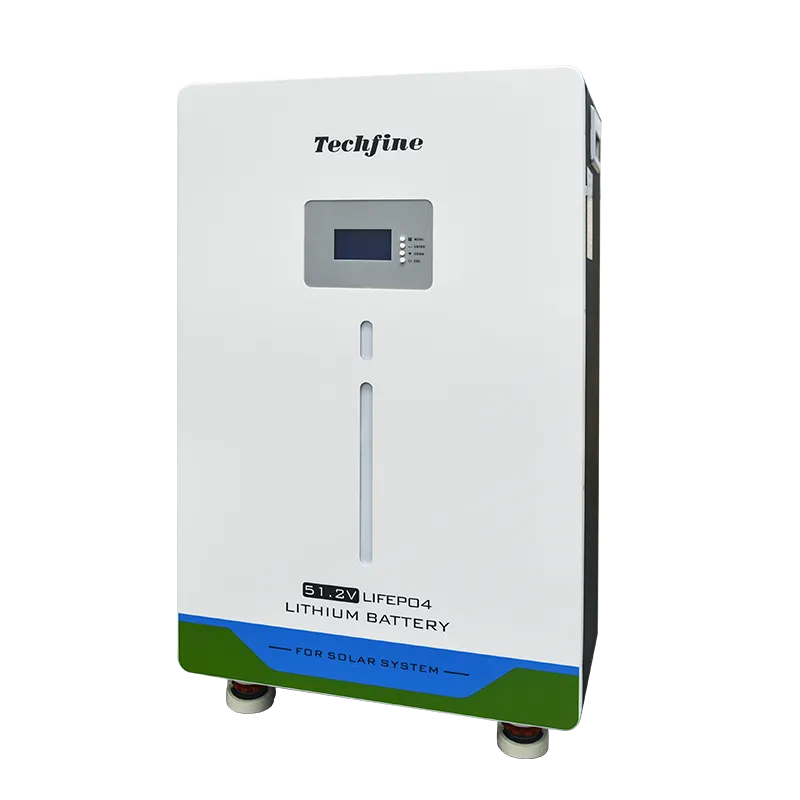

LB Series LiFePO4 Battery
LB Series LiFePO4 Battery - 1LB Series LiFePO4 Battery - 2LB Series LiFePO4 Battery - 3

Storage Battery

LB Series LiFePO4 Battery

LiFePO4 ESS battery in a metal shell — 25.6V/51.2V, 2.56–16.08 kWh, wall-mounted or wheeled, expandable to 15 modules in parallel.

  • LB100AH/51.2V
  • LB230AH/51.2V
  • LB300AH-14.3K
  • LB314AH-16.1K
  • LB100AH/25.6V
  • LB230AH/25.6V
  • LB314AH-8.0K
Capacity
2.56–16.08 kWh
Voltage
51.2V / 25.6V DC
Cycle Life
≥6,000 cycles (standard charge/discharge @ 25°C)
Expandable
1–15 modules
Request a Quote Download Datasheet

Overview

The LB series is a LiFePO4 energy storage battery in a high-strength metal shell, designed for residential and small commercial PV storage systems on 25.6V and 51.2V platforms from 2.56 to 16.08 kWh.

A built-in MCU with intelligent power management monitors battery status in real time — SOC/SOH estimation, cell balancing and multiple sleep and wake-up modes — while RS232/RS485/CAN communication with user-changeable inverter protocols integrates with mainstream inverters. Up to 15 modules can operate in parallel as storage needs grow.

Key Features

  • True-capacity LiFePO4 battery in a high-strength metal shell
  • SOC & SOH estimation, real-time status monitoring
  • LED strip + LCD display
  • Ultra-low standby loss with multiple sleep/wake-up modes
  • Adjustable over-current protection, short-circuit protection, buzzer alarm
  • High measurement accuracy: voltage ≤20mV, current ≤2% FS, temperature ≤2°C
  • Up to 15 modules in parallel — RS485 host monitoring & CAN
  • Cell balancing; capacity & cycle-count calculation
  • User-changeable inverter communication protocols

Models

Model

Usable Capacity

Nominal Voltage

Max Discharge

Max Output

Rec. Charge Current

Cycle Life

LB100AH/51.2V

5120 Wh

51.2V

100A

5120W

50A

≥6,000

LB230AH/51.2V — BMS 100A

11776 Wh

51.2V

100A

5120W

100A

≥6,000

LB230AH/51.2V — BMS 200A

11776 Wh

51.2V

200A

10240W

115A

≥6,000

LB300AH-14.3K

14336 Wh

51.2V

200A

10240W

140A

≥8,000

LB314AH-16.1K

16076 Wh

51.2V

200A

10240W

157A

≥6,000

LB100AH/25.6V

2560 Wh

25.6V

100A

2560W

50A

≥6,000

LB230AH/25.6V

5888 Wh

25.6V

200A

5120W

115A

≥6,000

LB314AH-8.0K

8038 Wh

25.6V

200A

5120W

157A

≥6,000


Model

Installation

Dimensions D×W×H (mm)

Net Weight (kg)

LB100AH/51.2V

Wall-mounted

720×480×170

56

LB230AH/51.2V

Wall-mounted

785×510×293

102

LB300AH-14.3K

Mobile (wheeled)

755×490×253

120

LB314AH-16.1K

Mobile (wheeled)

755×490×253

120

LB100AH/25.6V

Wall-mounted

532×347×170

34

LB230AH/25.6V

Wall-mounted

475×420×255

51

LB314AH-8.0K

Wall-mounted

476×496×255

68

Inverter Compatibility

Pylon, Growatt, Voltronic Power, Pengcheng, Schneider, SRNE

Technical Specifications

Energy

Battery Chemistry LiFePO4
Usable Capacity 2.56–16.08 kWh
Nominal Voltage 51.2V / 25.6V DC
Voltage Range 43.2–58.4V / 21.6–29.2V DC
Max Continuous Discharge Current 100A / 200A
Max Power Output 2560–10240W
Cycle Life ≥6,000 cycles (standard charge/discharge @ 25°C)
Depth of Discharge (DoD) ≥95%
Parallel Expansion 1–15 modules

Charging

Max Charging Voltage 58.4V ±0.2V / 29.2V ±0.2V DC
Recommended Charging Voltage 57.6V ±0.2V / 28.8V ±0.2V DC
Recommended Charging Current 50–157A (per model)
Charge Current Limiting 10A / 20A

BMS & Protection

BMS Protection Over-charge/discharge voltage & current, short circuit, over/under-temperature, MOS over-temperature, cell failure (cell ΔV >1V)
Overcurrent Protection BMS100: >105A alarm, >110A/1s trip; BMS200: >205A alarm, >210A/1s trip
Over/Under-Voltage Protection OV 59.2V / UV 43.2V (25.6V models: 29.6V / 21.6V)
Self-Discharge Work ≤50mA; low-power mode ≤200µA

Display & Communication

Display LED strip + LCD
Communication RS232, RS485, CAN (standard)
Inverter Protocols Pylon, Growatt, Voltronic Power, Pengcheng, Schneider, SRNE

Physical

Dimensions (D×W×H) 475×420×255 – 785×510×293 mm
Net Weight 34–120 kg
Terminal Type M8
Shell Material Metal
Installation Wall-mounted / Mobile (wheeled)

Environmental & Certifications

IP Rating IP21 (indoor)
Operating Temperature Discharge −10~+50°C; Charge 0~+60°C
Storage Temperature >1 month 0~35°C; ≤1 month −20~45°C
Certifications UN 38.3 tested (accredited labs, per model); IEC 62619 + CE certified (per model); annual sea/road transport appraisal — documents on request

Applications

  • Home backup power
  • Solar self-consumption
  • Small commercial storage
  • Off-grid & hybrid systems

Need help selecting a model?

Tell us your load, runtime requirements and site conditions — our engineers will recommend the right configuration.

Request a Quote
